Earth Moving Machinery Snow Plow Skid Steer Loade | RFQ Sourcing Details
Earthmoving Machinery · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Earthmoving Machinery. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description

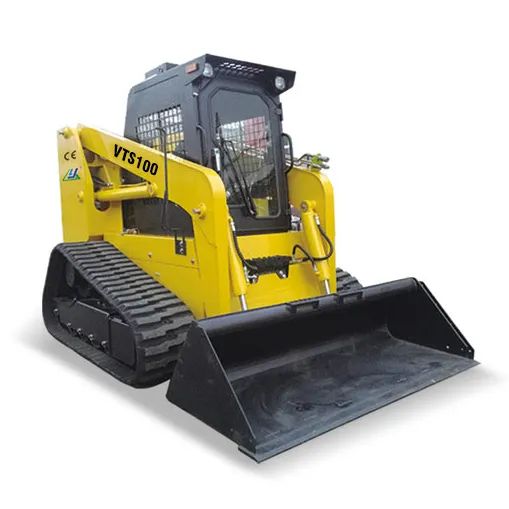

Earth Moving Machinery Snow Plow Skid Steer Loader With Attachments For Sale Rated load(kg):1200kg Rated power(kw):74kw Operation weight(kg):4500kg Total length(mm):3700mm Total width(mm): 2032mm Total height(mm):2160mm The skid steer loader is a special wheeled chassis equipment that uses the difference in the linear speed of the wheels on both sides to realize the steering of the vehicle.
It is mainly used in occasions where the work site is narrow, the ground is uneven, and the work content changes frequently. There are two walking modes of skid steer loader: wheel type and crawler type.
Specification For VTS100 Crawler Skid Steer Loader Parameter VTS100 load Rated(kg) 1200 Max Speed (km/h) 9/18 Rated flux (L/min) 88 Tire/Track model 140 High Flow Flux (L/min) 320x86 Rated power (Kw) 74 Fuel tank capacity (L) 90 Self weight bucket (kg) 4500 Bucket capacity (m3 ) 0.55 Dimension For VTS100 Skid Steer Loader A.
Overall operating height (mm) 4070 B. Height to bucket hinge pin (mm) 3280 C. Height to top of cab (mm) 2160 D. Height to bottom of level bucket(mm) 3140 E. Without bucket length ( mm) 3000 F. Overall length with bucket(mm) 3700 G. Dumping angle at maximum height( ° ) 40 H. Dumping height(mm) 2500 J.
Dumping reach(mm) 700 K. Rollback of bucket on ground(° ) 30 H. Rollback of bucket at full height 104 I. Wheelbase(mm) 1500 J. Ground clearance(mm) 200 K. Angle of departure( °) 20 O. Front turning radius without bucket(mm) 1365 P. Front tuning radius(mm) 2200 Q. Rear tuning radius(mm) 1742 R.
Rear axle to bumper (mm) 938 S. Tread width (mm) 1654 T. Width (mm) 1994 U. Bucket width (mm) 2030 Attachment of skid steer loader: Feature of skid steer loader: 1.
Since its minimum turning radius is less than half of the same level of articulated loaders, it is especially suitable for operations in narrow sites such as urban infrastructure, roads or construction sites, workshops, warehouses, docks, ship decks and even cabins. 2.
Adopting all-wheel drive and no inter-wheel differential is conducive to work on undulating ground. 3. Different working devices can be replaced or hooked up at the job site in an instant, generally only a few minutes 4.
Used for logistics support, site cleaning and project finishing operations of large construction machinery. 5. It can be used as a 6. In road protection, it can be directly used for snow removal and cleaning operations.
With snow removal and deicing accessories, the sliding equipment can quickly clear large areas of snow and icing, while benefiting from the mobility of the equipment itself, ensuring Effective large-scale work of related equipment.
VTS100 Rubber crawler track Skid steer loader Related of the skid steer wheel loader VJC35 VJC45 VJC60 VJC75 VJC100 VJC120 Related of the crawler skid steer loader VTS50 VTS65 VTS100
Earth | Applications and Buyer Notes
Earth is organized as a sourcing-ready Earthmoving Machinery reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time quest
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Earthmoving MachineryBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- pump
- station to provide aBased on visible page data; confirm exact value in the RFQ.
- type
- and crawler typeBased on visible page data; confirm exact value in the RFQ.
- brand
- include SDLG XCMG XGMA Liugong Lonking, Chengong ect. EngineBased on visible page data; confirm exact value in the RFQ.
- model
- 140 High Flow Flux (L/min) 320x86 RatedBased on visible page data; confirm exact value in the RFQ.
- power
- (Kw) 74 Fuel tankBased on visible page data; confirm exact value in the RFQ.
- weight
- bucket (kg) 4500 BucketBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 100 Original Used Volvo Excavator Ec480 Ec140 Ec210 Ec240 Ec290 Ec480 Hydraulic Crawler ExcavadoraThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10t 20t 30t Caterpillar Cat320d2 Used Excavator Cat307e D 320d2l 320gc 330d 336d 323dThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 12m3 Mxier Truck With Shacman ChassisThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 14 Ton 12 Ton Double Drum New Road Roller Price Ltc214 Xs143jThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 17 Tons Heavy Earth Moving Machinery Sd16 160hp Crawler Backhone Dozer Bulldozer With Ripper On SaleThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 2020 Year Good Condition Front Wheel Loader 936l Sdlg956lThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3t 6t Bucket Capacity 0 21m3 Small Mini Diggers Crawler Excavators For Road Construction ConstructThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Concrete And Mortar Equipment categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cranes Lifts And Attachments categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Earthmoving Machinery categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Road And Compaction Machinery categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Concrete Mixer Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Construction Machinery Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.

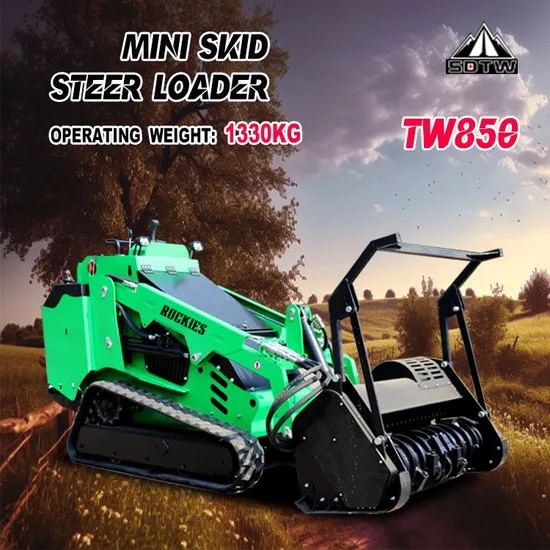

Sdtw Tw850 Earth Moving Machinery China Mini Small Crawler Skid Steer Loader with Attachments for SaRequest Quote
China Brand 0.75 Ton Skid Steer Loader China Swl2820 with Quick Change Mini Loaders Earthmoving MachRequest Quote
JC60 Wheeled Skid Steer Loader with 700 kg Rated Operating CapacityRequest Quote

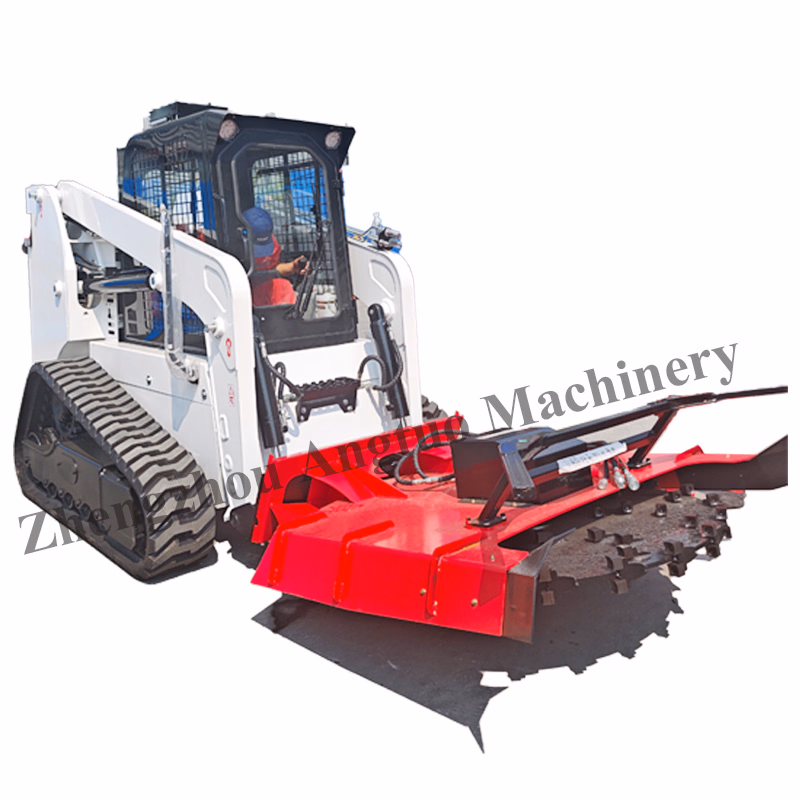

ATHTS-100 Tracked Skid Steer Loader with AT72P Disc OpenerRequest Quote
