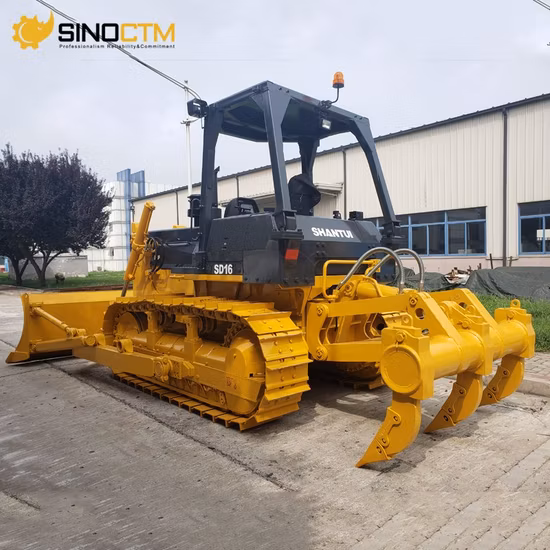

17 Tons Heavy Earth-Moving Machinery SD16 160HP C | RFQ Sourcing Details
Earthmoving Machinery · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Earthmoving Machinery. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
SD16 BULLDOZER SPECIFICATIONS ENGINE Model SC11CB184G2B1 / WD10G178E25;water-cooled, in-line, 4-stroke injection direct Rated power 120kw / 160hp Number of cylinders 6-126x130mm ( bore x stroke ) Piston displacement 9.726L Min.
Fuel consumption 214g/kW.h Maximum torque 765N.m@1300rpm POWER TRANSMISSION SYSTEM Torque converter 3-element, 1 stage, 1 phase Transmission Plane tary type, power-shift, forced lubrication Main drive Spiral bevel gear, single-stage speed reduction, splash lubrication Steering clutch Lubricated, multi-disc, spring loaded, hand hydraulically separated, inter-linking with steering brake Steering brake Lubricated, floating band structure, foot brake with hydraulic booster Final drive 2-stage speed reduction of spur gear, splash lubrication TRAVEL SPEED Gear 1st 2nd 3rd Forward 0-3.29km/h 0-5.82km/h 0-9.63km/h Reverse 0-4.28km/h 0-7.59km/h 0-12.53km/h UNDERCARRIAGE SYSTEM Type Sprayed beam, suspended structure of equalizer Carrier rollers 2 each side Track rollers 6 each side Track type Assembled, single-grouser Width of track shoes 510mm Pitch 203.2mm HYDRAULIC SYSTEM Maximum pressure 14.
Mpa Pump type Gear pump Discharge 243L/min Bore of working cylinder * no 110mm * 2 BLADE Blade type Straight tilt ( STANDARD ) Angle U blade Dozing capacity 4.5m3 4.3m3 5.0m3 Efficiency( theoretical value 40m ) 225m3/h 225m3/h 250m3/h Blade width 3388mm 3970mm 3556mm Blade height 1149mm 1040mm 1120mm Maximum drop below ground 540mm 540mm 530mm Maximum tilt adjustment 400mm -- 400mm RIPPER ( OPTIONAL ) Max digging depth of 3 shank ripper 572mm Max lift above ground 592mm Weight of 3 shank ripper 1667kg Performance Characteristics Powerful Diesel Engine: Ensures high efficiency in mining.
Optional Ripper & Winch: Ready for hard soil breaking and recovery. LGP Tracks Available: Perfect for swamp and soft ground operations. Low Fuel Consumption: Reduces operational costs while working efficiently.
Applications The SD16 bulldozer efficiently solves heavy-duty earthmoving, hard soil ripping, and complex terrain challenges in mining, road construction, and land clearing projects.
Ideal for road & highway construction, mining site maintenance, large-scale land reclamation, agricultural terracing, and port stockpile management. Terms of Payment 1. MOQ: 1 unit 2. Optional payment terms: T/T or L/C T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight. 3. Parts of famous brand can be adopted by your requirement. 4. Delivery time: Within15 workdays after receiving 30% deposit of T/T Hot-selling Products
17 | Applications and Buyer Notes
17 is organized as a sourcing-ready Earthmoving Machinery reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time question
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Earthmoving MachineryBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- MOQ
- 1 unit 2. Optional payment terms: T/T or L/C T/T: 30% deposit by T/T, 70% balancBased on visible page data; confirm exact value in the RFQ.
- Pump
- type GearBased on visible page data; confirm exact value in the RFQ.
- Type
- Sprayed beam, suspended structure of equalizer Carrier rollers 2 each side TrackBased on visible page data; confirm exact value in the RFQ.
- Model
- SC11CB184G2B1 / WD10G178E25;water-c ed, in-line, 4-stroke injection direct RatedBased on visible page data; confirm exact value in the RFQ.
- brand
- can be adopted by your requirement. 4Based on visible page data; confirm exact value in the RFQ.
- power
- 120kw / 160hp Number of cylinders 6-126x130mmBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 100 Original Used Volvo Excavator Ec480 Ec140 Ec210 Ec240 Ec290 Ec480 Hydraulic Crawler ExcavadoraThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10t 20t 30t Caterpillar Cat320d2 Used Excavator Cat307e D 320d2l 320gc 330d 336d 323dThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 12m3 Mxier Truck With Shacman ChassisThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 14 Ton 12 Ton Double Drum New Road Roller Price Ltc214 Xs143jThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 17 Tons Heavy Earth Moving Machinery Sd16 160hp Crawler Backhone Dozer Bulldozer With Ripper On SaleThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 2020 Year Good Condition Front Wheel Loader 936l Sdlg956lThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3t 6t Bucket Capacity 0 21m3 Small Mini Diggers Crawler Excavators For Road Construction ConstructThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Concrete And Mortar Equipment categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cranes Lifts And Attachments categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Earthmoving Machinery categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Road And Compaction Machinery categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Concrete Mixer Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Construction Machinery Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.

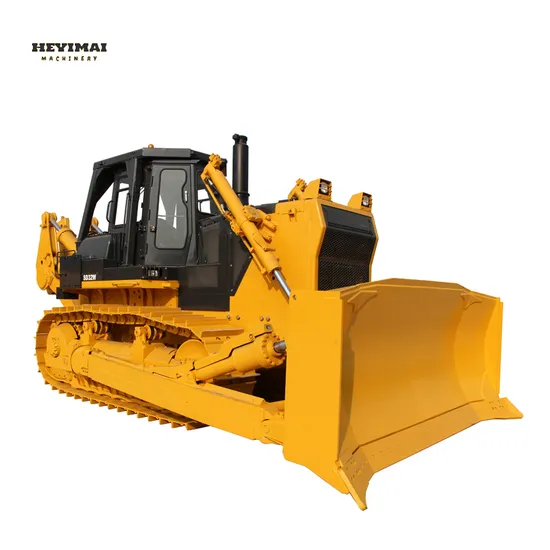

Earthmoving Machinery Liugong 340HP Heavy Crawler Bulldozer with Shank Ripper B320 - Bulldozer and LRequest Quote
Used 20 Tons Earth Moving Machinery Liugong 920f 920e Hydraulic Crawler Excavator for Sale - Used EaRequest Quote
Ready to Work Heavy Duty Bulldozers Earth Moving Bulldozers Construction Machinery Dozer CaterpillarRequest Quote
Japan Original Cat D7r Dozer Crawler Bulldozer Earth Moving Machine Caterpillar D7h D7g Used BulldozRequest Quote
Jg100L Hydraulic Excavator with Wood Grapple - High-Efficiency Earthmoving Solution - Crawler ExcavaRequest Quote

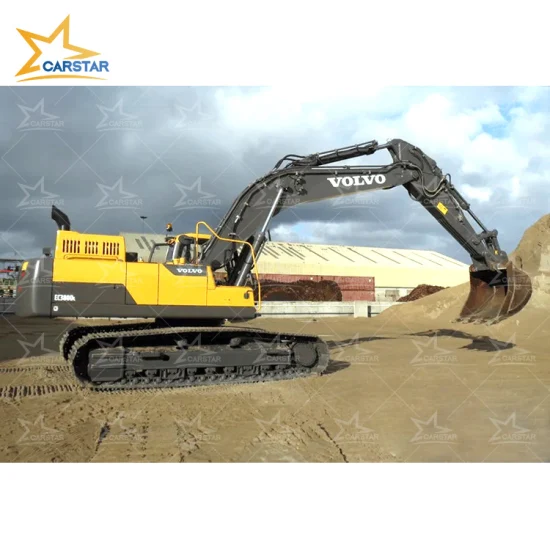

Used Volvo Excavator Used Earth Moving Construction Machinery Volvo 480 Excavator - Used ExcavatorsRequest QuoteEarthMachHub related sourcing paths
