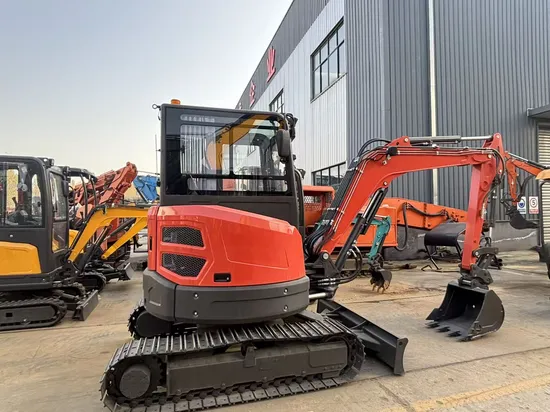

High-Performance 3 8 Ton Small Excavator for Effi | RFQ Sourcing Details

Product Feature And Advantage Equipped with state-of-the-art Kubota engines that proudly align with Euro V and EPA 4 emission standards, this machine delivers exceptional torque and dynamic performance.

It's a marvel of engineering that emphasizes energy conservation and fuel efficiency, setting a new benchmark in ecological responsibility. Experience precision like never before with our load-sensitive system, designed for unparalleled synergy between the engine and main pump.

This sophisticated technology ensures precise flow management, significantly boosting operational efficiency while conserving both fuel and valuable time. Crafted with an integral reinforced car disc and advanced robot welding techniques, this product eradicates the traditional influence of human error in welding.

Benefit from a stable arc, meticulously controlled melting depth, and an aesthetically pleasing finish that exemplifies quality craftsmanship. Indulge in the luxury of high-end configuration with our selection of internationally acclaimed hydraulic components.

This guarantees an unmatched level of reliability in the hydraulic system, making sure that your operations run smoothly and efficiently. This versatile product finds its place in a multitude of applications such as indoor demolition, orchard planting, and municipal engineering.

It excels in greenhouse work, land reclamation, nursery trench digging and fertilization, alongside pipeline installation, basement renovations, and various underground operations.

Boasting a standard crushing pipeline, this machine can be paired with an array of accessories including crushing hammers, soil looseners, wood grabbers, and spiral drills. Its versatility is further enhanced by interchangeable iron and rubber tracks, tailoring it to various construction scenarios.

The inclusion of a deflection boom facilitates easy excavation of wall bases. Detailed Photos Product Parameters Engine Model Kubota D KW/2200rpm Max. Turque 97.4N.m/1500RPM Type In-line, water cooled, Mechanical pump, normally aspirated Displacement 1.647L No.

of cylinder 4 Main Performance Swing Speed 0-11 r/min Traveling Speed(high/low) 4.4/2.4km/h Grade ability 58% Max. Bucket Digging Force 30.4kN Arm Digging Force 18.2kN Ground Pressure 32 Kpa Hydraulic system pressure 22.5. Mpa Machine Weight 3810 KG Boom Length 2535. Mm Arm Length 1400.

Mm Fuel Tank capacity 42 L Hydraulic Tank capacity 48.5L Engine oil capacity 7L Carrier roller(each side) 1 Supporting roller(each side) 4 Overall Dimensions Overall Length 4915 mm Overall Width 1720 mm Overall Height 2525 mm Mini Ground clearance 295 mm Track width 300 mm Axle base(Track length on ground) 1670 mm Length of track 2154 mm Track Gauge 1420 mm Swing radius at tail 860mm Swing radius at front 2538 mm Height of blade 350 mm Operation parameters Bucket Capacity 0.12 m3 Max.

Digging Radius 5480 mm Max. Digging Depth 3208 mm Max. Digging Height 4800 mm Max. Dumping Height 3406 mm Max. vertical digging depth 3208 mm
